Frost Protection

Cold Air Drain

Frost Protection | Cold Air Removal

Cold Air Drain

The Cold Air Drain is designed to eliminate micro climates by removing or preventing cold air accumulation.

An environmentally friendly system that integrates single or multiple frost protection methods at a low operating cost, lessens the temperature difference between cold, frosty areas that accumulate cold air.

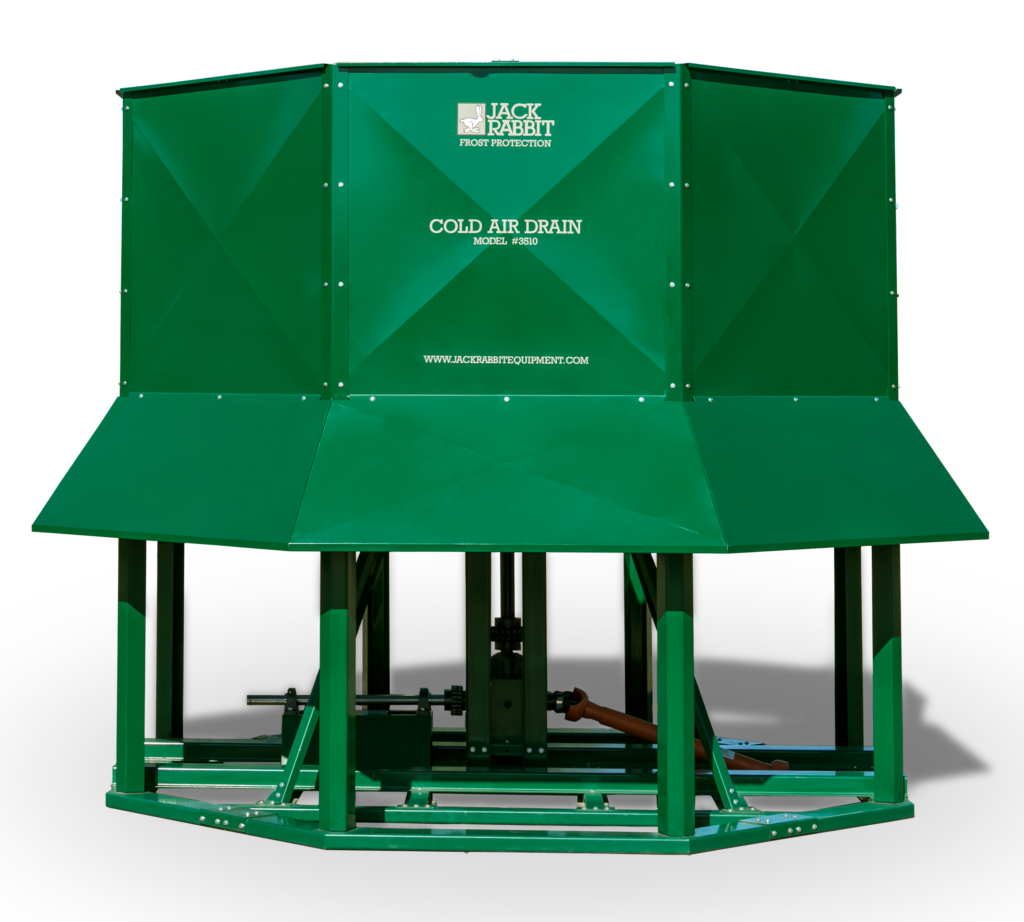

Cold Air Drain Model 3510 drains 200,000 CFM of low lying, frost and protects up to 16 acres.

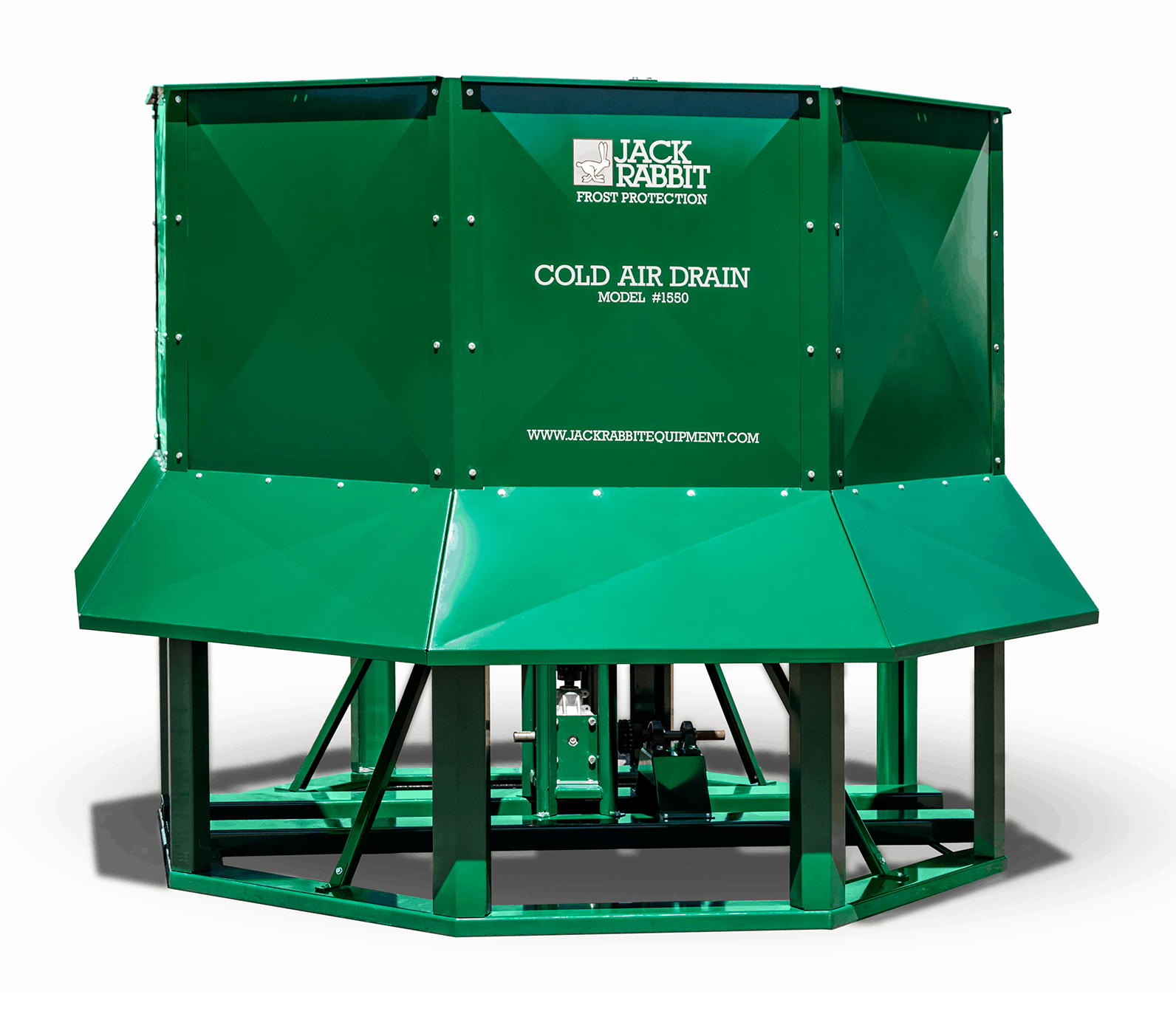

Cold Air Drain Model 1550 expels cold air at a rate of 105,000 CFM and protects up to 9 acres.

Cold Air Drain Model 3510 drains 200,000 CFM of low lying, frost and protects up to 16 acres.

Cold Air Drain Model 1550 expels cold air at a rate of 105,000 CFM and protects up to 9 acres.

HotSpotter is electric powered and designed for smaller applications.  It drains approximately 7,000 CFM of cold air and protects up to .25 acres.

Temperature sensing power units (auto start boxes) provide an easy way to start the cold air drain. Powered by either gasoline, propane or electric.

All units come equipped with a PTO shaft, standard 540 RPM and a minimum 35 PTO HP.

Benefits Overview

Convenient and Cost- Effective

Customized Systems

Virtually Maintenance Free

Portable

Low Operating Cost

Minimal Site Prep

Specifications

  Model 1550 Model 3510 HotSpotter
Size

96′ octagonal at base

116′ octagonal at skirts

90′ tall

130′ octagonal at base

152′ octagonal at skirts

119′ tall

34′ wide x 29′ tall
Weight Approx. 1,100 lbs Approx. 2,160 lbs Approx. 80 lbs
Area Coverage 6-9 acres depending on topography 10-14 acres depending on topography 1/4 acres depending on topography
Fuel Capacity 20 gallon gasoline  20 gallon gasoline
Noise Level 63-66 dB depending on power unit 63-66 dB depending on power unit
