30/36 ELEVATOR



BELTS, PULLEYS, SEALS

28891 29131 29462 29475

HORZONTAL BELT
30" X 309"

Item Number 28891

INCLINE BELT BIG 'Z'
36" X 70'3"

Item Number 29131

CROSS CONVEYOR BELT
24" X 160"

Item Number 29462

INCLINE BELT BIG 'Z'
*CLEATED/WALNUT*
36" X 70'3"

Item Number 29475



27523A LACE PIN 30" 27523 LACE PIN 20" 27523 LACE PIN 20"



28832A



LACE PIN 30"

Item Number 27523A

LACE PIN 36"

Item Number 27523D

LACE PIN 24"

Item Number 27523C

30" DRIVE PULLEY

Item Number 28832A









36" IDLER PULLEY

Item Number 28418B

36" HEAD PULLEY

Item Number 28441

30" RETURN ROLLER

Item Number 26018

36" RETURN ROLLER

Item Number 28506




36" SNUB ROLLER

Item Number 28440



24" IDLER PULLEY

Item Number 29443

24" DRIVE PULLEY

Item Number 29444

POP OUT SEAL

Item Number 28829



TRANSITION SEAL transition seal transition seal

TRANSITION SEAL

Item Number 28934

NEW LH TRANSTION SEAL COMPATABLE WITH ANY 30/36

Item Number 29946

NEW RH TRANSITION SEAL COMPATABLE WITH ANY 30/36

Item Number 29947



INCLINE TRANSITION SEAL

Item Number 29638



37" BELT WIPER 42 3/4" BELT WIPER

37" BELT WIPER (HORIZONTAL BELT)

Item Number 26887

42 3/4" BELT WIPER (INCLINE BELT)

Item Number 28936

X

X



BEARINGS & SPROCKETS



22977 BEARING 1 INCH 22097 BEARING 1.5 INCH 23542 BEARING FLANGE ASSY 23524A BERAING W/ LOCK COLLAR

1" BEARING

Item number 22977

1.5" BEARING

Item number 22097

BEARING/FLANGE ASSY

Item Number 23524

BEARING

Item Number 23524A



23524B FLANGE 31067 BEARING 1.5' 27306 BEARING,HEX FOR RETURN ROLLER 27307 BEARING HOUSING FRO RETURN ROLLER

FLANGE
FOR #23542A

Item number 23524B

BEARING/FLANGE ASSY

Item Number 31067

BEARING, HEX
FOR RETURN ROLLER

Item Number 27306

BEARING HOUSING
FOR #27306

Item Number 27307



26201 6T ECCENTRIC SPROCKET 26201A 6T CONCENTRIC 22983 IDLER SPROCKET 26202 SPROCKET 11T 1'

6T ECCENTRIC SPROCKET

Item number 26201

6T CONCENTRIC SPROCKET

Item Number 26201A

IDLER SPROCKET

Item Number 22983

IDLER SPROCKET

Item Number 26202



26464 BRG.ADJ.'PUSHER' BLOCK (1.25' BRG) 26464A BRG.ADJ.'PULLER' BLOCK (1.25' BRG) 26464B BRG.ADJ.'PULLER' BLOCK (1' BRG.) 26464C BRG.ADJ.'PUSHER' BLOCK (FOR 1' BRG.)

BRG.ADJ."PUSHER" BLOCK (FOR 1.25" BRG.)

Item Number 26464C

BRG.ADJ."PULLER" BLOCK (FOR 1.25" BRG.)

Item Number 26464A

BRG.ADJ."PULLER" BLOCK (FOR 1" BRG.)

Item Number 26464B

BRG.ADJ."PUSHER" BLOCK (FOR 1" BRG.)

Item Number 26464D



23512 BRG.ADJ.'RIGHT' HEAD PULLEY 23513 BRG.ADJ.ASSY,LEFT(FOR HEAD PULLEY 1.5' BRG) 24888 TAKE UP BOLT

BRG.ADJ.ASSY,"RIGHT"
(FOR HEAD PULLEY 1.5"BRG)

Item Number 23513R

BRG.ADJ.ASSY,"LEFT"
(FOR HEAD PULLEY 1.5"BRG)

Item Number 23513

TAKE UP BOLT

Item Number 24888




30/36 ELECTRICAL



22416 IGNITION SWITCH W/ KEYS 22416A IGNITION KEY ONLY 26403 SWITCH, THROTTLE / BELT SWITCH INSERT, THROTTLE

IGNITION SWITCH ASSY

Item Number 22416

IGNITION KEY

Item Number 22416A

SWITCH, THROTTLE
ON / OFF

Item Number 26403

SWITCH PLATE INSERT, THROTTLE

Item Number 29910



26403 SWITCH, BELT SWITCH INSERT,BELT 26403 SWITCH,WOODCHUCK SWITCH INSERT, WOODCHUCK

SWITCH, BELT
ON / OFF

Item Number 26403

SWITCH INSERT,BELT

Item Number 27074

SWITCH,WOODCHUCK
ON / OFF

Item Number 26403

SWITCH INSERT,WOODCHUCK

Item Number 29912



27118 SWITCH, JACK-CHUTE SWITCH INSERT, JACK-CHUTE 27527 SWITCH,TOGGLE. ON / OFF 27213 SWITCH,MOMENTARY. END OF BIN

SWITCH, JACK-CHUTE
MOMENTARY

Item Number 27118

SWITCH INSERT,
JACK-CHUTE

Item Number 29913

SWITCH,LIGHT/AUX.
ON / OFF

Item Number 27527

JACK SWITCH,END OF BIN.MOMENTARY

Item Number 28213



TAIL LIGHT 27145A LIGHT ASSY,GREEN.KEY 27145 LIGHT ASSY,RED.OIL 27145 LIGHT ASSY,RED.AMP

TAIL LIGHT

ITEM NUMBER 27475

LIGHT ASSY,GREEN."KEY"

Item Number 27145A

LIGHT ASSY, RED."OIL"

Item Number 27145

LIGHT ASSY,RED."AMP"

Item Number 27145



27123 BULB ONLY 26399 CIRCUIT BREAKER 30AMP 27131A OIL TEMPERATURE GAUGE 2' 27131B ADAPTER RING 2.5'

BULB ONLY

Item Number 27123

CIRCUIT BREAKER
30A

Item Number 26399

OIL TEMPERATURE GAUGE 2"

Item Number 27131A

ADAPTER RING FOR 2.5"

Item Number 27131B



27876A OIL PRESSURE SWITCH 3 PRONG LIGHT RELAY,HORN 27803B ALTERNATOR

OIL PRESSURE SWITCH,3PRONG.
SER#207+

Item Number 27876A

LIGHT

ITEM NUMBER 27428

RELAY,HORN

Item Number X

ALTERNATOR

Item Number 27803B



27202D FUEL SHUT OFF SOLENOIN 27203B O RING 27657 TIMER MODULE SER#176+

SOLENOID W/ ORING,FUEL SHUT OFF

Item Number 27202D

O-RING FOR #27202D

Item Number 27203B

TIMER MODULE

Item Number 27657

SOLENOID,THROTTLE

Item Number 28346



22424 HOUR METER BRAKE HARNESS 24564 WIRE HARNESS

HOUR METER

Item Number 22424

BRAKE WIRE HARNESS

ITEM NUMBER 29442

WIRE HARNESS

Item Number 29634



30/36 REMOTE ASSY & COMPONENTS



28784 REMOTE KIT COMPLETE 28247 REMOTE RECIEVER 28246 REMOTE TRANSMITTER 27957 REMOTE,1ST GENERATION

REMOTE KIT,COMPLETE

Item Number 28784

REMOTE RECIEVER

Item Number 28247

REMOTE TRANSMITTER

Item Number 28246

REMOTE TRANSMITTER
**1ST GENERATION**

Item Number 28487



28487 ANTENNA MOUNT 28448 ANTENNA 8 INCH LINK CABLE 28489 COAX CABLE

ANTENNA MOUNT

Item Number 28487

ANTENNA 8"

Item Number 28488

GIGALINK CABLE

Item Number 28489A

COAX CABLE

Item Number 28489



30/36 HYDRAULICS



TRIPLE PUMP 30/36 DOUBLE PUMP NO W/C


TRIPLE PUMP
(MODELS W/WOODCHUCK)

Item Number 28989

DOUBLE PUMP
(NO WOODCHUCK)

Item Number 28994



26034 INCLINE CONVEYOR MOTOR 26034A SEAL KIT FOR MLHT 500
HORIZONTAL DRIVE MTR
 6 BOLT FLANGE RE SEAL KIT W/BUNA SEAL

INCLINE CONV. HYD. MOTOR(MLHT500)

Item Number 26034

SEAL KIT FOR
#26034

Item Number 26034A

HORIZONTAL CONV. HYD. MOTOR (RE18)
1" SHAFT 6 BOLT FLANGE

Item Number 29104

SEAL KIT FOR #29104

Item Number 29806



29358 HORZ.CONV.HYD.MOTOR (WR18) 29503 SEAL KIT FOR WR HYD. MOTOR 29357 CROSS CONV. HYD. MOTOR 29503 SEAL KIT FOR WR HYD. MOTOR

HORZONTAL CONV. HYD. MOTOR, WR18

Item Number 29358

SEAL KIT FOR WR18 #29358

Item Number 29503

CROSS CONVEYOR HYD. MOTOR, WR10

Item Number 29357

SEAL KIT FOR WR10 #29357

Item Number 29503



24395E TORQUE ARM 4.5' PIN CROSS CONVEYOR WOODCHUCK 24395D TORQUE ARM 7.5' PIN DRIVE MOTOR WOODCHUCK HORIZONTAL TORQUE ARM 25996 TORQUE ARM INCL.CONV.MOTOR. HEAD PULLEY

TORQUE ARM 4.5" PIN
CROSS CONVEYOR
(WOODCHUCK)

Item Number 24395E

TORQUE ARM 7.25" PIN
DRIVE MOTOR
(WOODCHUCK)

Item Number 24395D

TORQUE ARM 10.5" PIN
HORZ.DRIVE MOTOR
(BIN BELT)

Item Number 28935

TORQUE ARM
INCL.DRIVE MOTOR
(HEAD PULLEY)

Item Number 25996



26493 COUPLER 1' 29502 COUPLER 1.5' SPLIT 27352 LOCK COLLAR PD36BTX

COUPLER 1" SPLIT

Item Number 26493

COUPLER 1.5" SPLIT
(HEAD PULLEY)

Item Number 29502

LOCK COLLAR 1"

Item Number 27352

TEST PORT FITTING

Item Number 29987



HYD. MANIFOLD W/C 27817 TEST PORT FITTING PD341 CARTRIDGE VALVE, BELT ON/OFF SV1623 27318 COIL 12V

HYDRAULIC MANIFOLD

Item Number 29441

TEST PORT FITING 'PD341'

Item Number 27817

CARTRIDGE VALVE
BELTS ON/OFF
'SV1623'

Item Number 29554

COIL, 12V

Item Number 27318



27317 BLOCK RELIEF,FRDAXAN. 1.0 GPM 27317A SEAL KIT FOR FRDAXAN 27315 RELIEF,BELT.RPGCFAN 2500PSI 27315A SEAL KIT FOR #27315 RPGCFAN

RELIEF,BLOCK. 'FRDAXAN' / 1.0 GPM

Item Number 27317

SEAL KIT, FOR #27317 FRDAXAN

Item Number 27317A

RELIEF,BELT. 'RPGCFAN' / 2500 PSI

Item Number 27315

SEAL KIT, FOR
#27315 RPGCFAN

Item Number 27315A



27314 RELIEF, JACK & CHUTE 'RPECFAN' 1500 PSI 27314A SEAL KIT FOR #27317 FRDAXAN 29555 CARTRIDGE VALVE,SV1047A JACK-CHUTE ON/OFF W/C MANIFOLD

RELIEF,JACK / CHUTE.
'RPECFAN' / 1500 PSI

Item Number 27314

SEAL KIT, FOR #27314 RPECFAN

Item Number 27314A

CARTRIDGE VALVE,'SV1047A'
JACK/CHUTE -ON/OFF

Item Number 29555

WOODCHUCK MANIFOLD

Item Number 29440



24403 FLOW CONTROL FC51-12SAE SV12-21 27573 HYD.SELECTOR VALVE JACK / CHUTE TORQUE PLATE

FLOW CONTROL
'FC51-12SAE'

Item Number 24403

CARTRIDGE VALVE SV12-21

Item Number 29988

SELECTOR VALVE
JACK / WOODCHUCK

Item Number 27573

TORQUE PLATE

Item Number 29589



26612 CYLINDER,JACK 2X24 23548A HYDRAULIC FILTER 28842 HYD.FILL CAP 'LOCKING' 27182 HYD.FILL CAP

CYLINDER,JACK
2X24

Item Number 26612

HYDRAULIC FILTER

Item Number 23548A

HYD. FILL CAP 'LOCKING'

Item Number 28842

HYD. FILL CAP

Item Number 27182



CLAMP, 1' DOUBLE 25278 CLAMP, 3/4' DOUBLE 24669 GAUGE, SIGHT LEVEL 27386 STRAINER, 15 GPM 1.5'X1' NPT

CLAMP, 1" DOUBLE

Item Number 26199

CLAMP, 3/4" DOUBLE

Item Number 25278

SIGHT LEVEL GAUGE

Item Number 24669

STRAINER,25 GPM
2"X1.25"

Item Number 24671



filter head assy.

FILTER HEAD

Item Number 29989

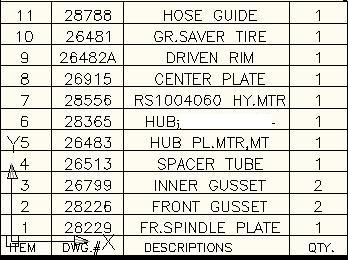

FRONT WHEEL STEERING



28239 ROTARY ACTUATOR 'L20' FOR MODELS 2008 AND AFTER 26908 ROTARY ACTUATOR 'L10' MODELS 2007 AND BEFORE 26908A SEAL KIT FOR ROTARY ACTUATOR

ROTARY ACTUATOR
'L20' MODELS 2008 AND AFTER

Item Number 28239

ROTARY ACTUATOR
'L10' MODELS 2007 AND BEFORE

Item Number 26908

SEAL KIT FOR ROTARY ACTUATOR

Item Number 26908A

SEAL KIT FOR ROTARY ACTUATOR

Item Number 26908B



29357 CROSS CONV. HYD. MOTOR 29503 SEAL KIT FOR WR HYD. MOTOR 28365 DRIVE WHEEL HUB

HYD. MOTOR, WR10
(REF#7)

Item Number 29357

SEAL KIT FOR WR10 #29357

Item Number 29503

DRIVE WHEEL HUB
(REF#6)

Item Number 29503



REAR AXLE

  HWY TIRE TIRE/WHEEL



TIRE

Item Number 30549

WHEEL

Item Number 28971

TIRE & WHEEL ASSY.

Item Number 28971A

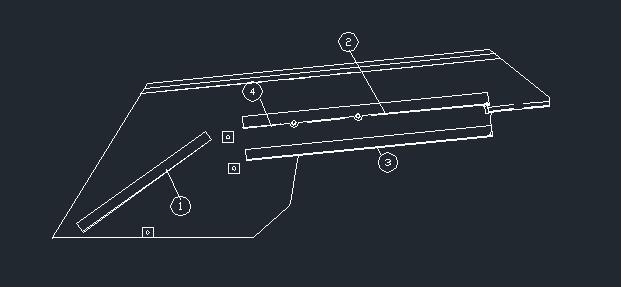

WOODCHUCK DESTICKER DS36

DS36 SLIDE KIT

Item Number 28930











22190 ELEVATOR BOLT 25368 SLIDE 7' WEAR SLIDE 22"

ELEVATOR BOLT
1/4"X3/4"

Item Number 22190

WEAR SLIDE
7"

Item Number 25386

WEAR SLIDE
22"

Item Number 25198

WEAR SLIDE
46"

Item Number 24491



26780 DESTICKER MASTER LINK W/ FINGERS

WEAR SLIDE 29.5"

Item Number 28893

DESTICKER CHAIN

Item Number 28530A

DESTICKER MASTER LINK W/ FINGERS

Item Number 28535

DESTICKER MASTER LINK
'5 FLAG'

Item Number 28533



26046 FLAG DS30 27141 DESTICKER MASTER LINK CA557 PLAIN

DESTICKER FLAG

Item Number 26046

DESTICKER MASTER LINK PLAIN CA557

Item Number 27141

DRIVE SHAFT
1" X 40.75"

Item Number 28896

IDLER SHAFT
1" X 36.25"

Item Number 28897



24395E TORQUE ARM 4.5' PIN CROSS CONVEYOR WOODCHUCK 24395D TORQUE ARM 7.5' PIN DRIVE MOTOR WOODCHUCK 26493 COUPLER 1'

TORQUE ARM 4.5" PIN
CROSS CONVEYOR
(WOODCHUCK)

Item Number 24395E

TORQUE ARM 7.25" PIN
DRIVE MOTOR
(WOODCHUCK)

Item Number 24395D

COUPLER 1"

Item Number 26493



30/36 ENGINE

27010 OIL FILTER 27011 FUEL FILTER 27943 INLINE FUEL FILTER 27633 FUEL FILTER MOUNT

OIL FILTER

Item Number 27010

FUEL FILTER

Item Number 27011

INLINE FUEL FILTER

Item Number 27943

FUEL FILTER MOUNT

Item Number 27633



27310 THROTTLE LINKAGE 24744C BALL JOINT 90 DEG. 24744D HEX SPACER 24744E BALL JOINT STRAIGHT

THROTTLE LINKAGE

Item Number 29485

BALL JOINT 90DEG.

Item Number 28349

HEX SPACER

Item Number 28660

BALL JOINT STRAIGHT

Item Number 28659



27492 INJECTING LINE KIT 28491D INJECTION LINE BULD PER FOOT 28941C 'T' FITTING 28941A QUAD FITTING

INJECTION LINE KIT

Item Number 27492

INJECTION LINE PER FOOT

Item Number 28941D

'T' FITTING

Item Number 28941C

QUAD FITTING

Item Number 28941A



28941B REDUCER 27203A FUEL PUMP 27203C FUEL PUMP W/ PRIMER 27776 THROTTLE LEVER

REDUCER

Item Number 28941B

FUEL PUMP

Item Number 27203A

FUEL PUMP W/ PRIMER

Item Number 27203C

THROTTLE LEVER

Item Number 27776





27202D FUEL SHUT OFF SOLENOIN 27203B O RING 27657 TIMER MODULE SER#176+

SOLENOID W/ ORING,FUEL SHUT OFF

Item Number 27202D

O-RING FOR #27202D

Item Number 27203B

TIMER MODULE

Item Number 27657

SOLENOID,THROTTLE

Item Number 28346





28158 DIP STICK

AIR FILTER OUTER

Item Number 28330

AIR FILTER INNER

Item Number 28331

DUST EJECTER

Item Number 29514A

DIP STICK

Item Number 28158





28970 OIL FILL CAP 27168A FAN BELT SER# 207+ 27959 ENGINE MOUNT

OIL FILL CAP

Item Number 28970

FAN BELT

Item Number 27168C

FUEL GUAGE

Item Number 29437

ENGINE MOUNT

Item Number 27959



30/36 PAINT & DECALS

24637 OIL AMP KEY

DECAL
OIL AMP KEY

Item Number 24637

DECAL
KEEP HANDS OUT

Item Number 27532

DECAL
TRANSIT LINK

Item Number 29692

DECAL
WOODCHUCK

Item Number 26412E





24546 DECAL DIESEL WHITE 2'X7' 24548A DECAL HYDRAULIC 'BROWN' 2' X 11 5/16' 24548 DECAL HYDRAULIC 'WHITE' 2' X 11 5/16'

DECAL
JACK RAISE LOWER

Item Number 26412B

DECAL
DIESEL 'WHITE'

Item Number 24546

DECAL
HYDRAULIC 'BROWN'
2" X 11 5/16"

Item Number 24548A

DECAL
HYDRAULIC 'WHITE'
2" X 11 5/16"

Item Number 24548





24537 DECAL JACKRABBIT WHITE 24538 DECAL JACKRABBIT 'BROWN' 25750 BEIGE TOUCH UP SPRAY CAN 25750A BROWN TOUCH UP SPRAY CAN

DECAL
JACKRABBIT 'WHITE'
6" X 43"

Item Number 24537

DECAL
JACKRABBIT'BROWN'
6" X 43"

Item Number 24538

BEIGE
TOUCH UP SPRAY CAN

Item Number 25750

BROWN
TOUCH UP SPRAY CAN

Item Number 25750A





27552A ONE GALLON BEIGE MIXED 27552B ONE GALLON BROWN MIXED 27552 ONE GALLON PRIMER MIXED

1 GALLON BEIGE MIXED

Item Number 27552A

1 GALLON BROWN MIXED

Item Number 27552B

1 GALLON PRIMER MIXED

Item Number 27552





SITE CURRENTLY UNDER CONSTRUCTION



PLEASE CALL JACKRABBIT PARTS DEPARTMENT 209 599 6118



JACKRABBIT
471 Industrial Ave. Ripon Ca. 95366
ph 209-599-6118 fax 209-699-6119
