HP335 RESERVOIR CART SLIDE KITS

27130 SLIDE KIT SER#200+

SLIDE KIT # 27130
FOR HP 335 SERIAL # 200+

ITEM # PART # DESCRIPTION REQUIRED
1 26977 UPPER CHAIN SLIDE 93" 2
2 25382 LOWER CHAIN SLIDE 85" 2
3 22955 INCLINE TOP SLIDE 78" 2
4 25379 INCLINE RETURN SLIDE 38" 2
5 26963 EXHAUST SLIDE 35" 4
6 22956 COVER SLIDE 33" 1
7 25251 HOROZONTAL RETURN SLIDE 21" 2
NOTSHOWN 22190 ELEVATOR BOLTS 1/4"X3/4" 70



27129 SLIDE KIT SER#49-153
SLIDE KIT # 27129
FOR HP 335 SERIAL # 49-153

ITEM # PART # DESCRIPTION REQUIRED
1 25384 UPPER CHAIN SLIDE 108" 2
2 25385 LOWER CHAIN SLIDE 96" 2
3 25382 INCLINE TOP SLIDE 85" 2
4 24491 INCLINE RETURN SLIDE 46" 2
5 25379 EXHAUST SLIDE 38" 4
6 22956 COVER SLIDE 33" 1
7 25251 HOROZONTAL RETURN SLIDE 21" 2
NOTSHOWN 22190 ELEVATOR BOLTS 1/4"X3/4" 70









HP335 RESERVOIR CART SEAL KITS

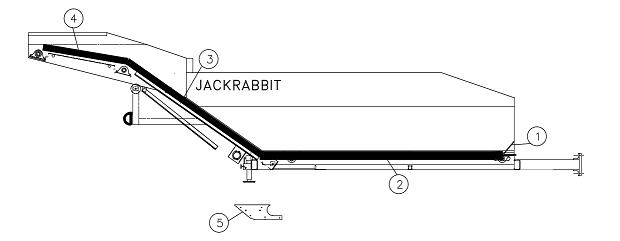

27163 SEAL KIT SER#200+


SEAL KIT # 27163
FOR HP 335 SERIAL # 200+

ITEM # PART # DESCRIPTION REQUIRED
1 27044 FRONT SEAL 1
2 27028 HOROZONTAL BIN SEAL RIGHT 1
27029 HOROZONTAL BIN SEAL LEFT 1
3 27177 INCLINE SEAL RIGHT 1
27178 INCLINE SEAL LEFT 1
4 27047 EXHAUST SEAL 2
5 27172C LOWER TRANSITION SEAL 2





  27124 TRANSITION SEAL LEFT 27124A TRANSITION SEAL RIGHT


TRANSITION SEAL ASSY LEFT

Item number 27124 :)

TRANSITION SEAL ASSY RIGHT

Item Number 27124A




27049 FRONT BUMPER NOTCHED 12X140

FRONT BUMPER NOTCHED 12" X 140"
FOR: DRAPER TOP/DESTICKER TOP/DUMMY TOP MODLES

Item Number 27049





27049A FRONT BUMPER NO NOTCH 12" X 140"

FRONT BUMPER NO NOTCH 12" X 140"
FOR: AUGER MODLES

Item Number 27049A




27163 SEAL KIT SER#200+

SEAL KIT # 27162
FOR HP 335 SERIAL # 49-153

ITEM # PART # DESCRIPTION REQUIRED
1 25267 FRONT SEAL 1
2 25779 HOROZONTAL BIN SEAL RIGHT 1
25780 HOROZONTAL BIN SEAL LEFT 1
3 25786 INCLINE SEAL RIGHT 1
25787 INCLINE SEAL LEFT 1
4 25975 EXHAUST SEAL RIGHT 1
25976 EXHAUST SEAL LEFT 1
5 25392 LOWER TRANSITION SEAL 2



27049 FRONT BUMPER NOTCHED 12X140

FRONT BUMPER NOTCHED 12" X 140"
FOR: DRAPER TOP/DESTICKER TOP/DUMMY TOP MODLES

Item Number 27049





27049A FRONT BUMPER NO NOTCH 12" X 140"

FRONT BUMPER NO NOTCH 12" X 140"
FOR: AUGER MODLES

Item Number 27049A







HP335 RESERVOIR CART CHAINS

26995 HORZ.CONV.CHAIN ASSY. 19FT. 34 SLAT SER#200 27777B HORZ.CONV.CHAIN ASSY 21.5FT 39SLAT SER#49-153 25184 WOVEN WIRE MESH CHAIN PER FOOT 25182 550 CHAIN WITH A1 ATTACHMENT PER FOOT

HORZ.CONV.ALMOND 550 CHAIN ASSY 19FT. 34_SLAT
SER#200+

Item number 26995

HORZ.CONV.ALMOND 550 CHAIN ASSY 20.5FT. 39_SLAT
SER#49-153

Item number 25178

WOVEN WIRE MESH CAHIN PER FOOT

Item Number 25184

550 CHAIN WITH A1 ATTACHMENT PER FOOT



Item Number 25182



27143 550 MASTER LINK 27143A 550 OFFSET LINK 27144 550 MASTER LINK WITH A1 ATTACHMENT 25176 HORZ. CHAIN FLIGHT

550 MASTER LINK

Item number 27143

550 OFFSET LINK

Item number 27143A

550 MASTER LINK WITH A1 ATTACHMENT

Item Number 27144

HORZ. CHAIN FLIGHT

Item Number 25176



HORZ. SLAT LACE PIN

HOROZONTAL SLAT 550

Item number 25174A

LACE PIN

Item number


INCLINE ALMOND 557 CHAIN ASSY 26.5FT. 49_SLAT
SER#200+

Item number 27555B

INCLINE ALMOND 557 CHAIN ASSY 27.5FT. 51_SLAT
SER#49-153

Item Number 27556



25184 WOVEN WIRE MESH CHAIN PER FOOT 26717 557 PLAIN CHAIN PER FOOT 27141 557 MSTER LINK 27142 557 MASTER LINK WITH A4 ATTACHMENT

WOVEN WIRE MESH CAHIN

Item Number 25184

557 PLAIN CHAIN PER FOOT

Item number 26717

557 MASTER LINK

Item Number 27141



557 MASTER LINK WITH A4 ATTACHMEN

Item Number 27142




25177 INCLINE CHAIN FLIGHT 25174 INCLINE CHAIN SLAT LACE PIN

INCLINE CHAIN FLIGHT

Item number 25177

INCLINE CHAIN SLAT 557

Item number 25174

LACE PIN

Item Number

INCLINE WALNUT CHAIN ASSY 27 FT. SER#200+

Item Number 26165



HOROZONTAL WALNUT CHAIN ASSY 21 FT. SER#200+

Item Number 26165A



MASTER LINK WALNUT

Item Number 26224

INCLINE PECAN CHAIN ASSY 27 FT.

Item number 27090



HOROZONTAL PECAN CAHIN ASSY

Item number X





MASTER LINK PECAN

Item number 27091

80 ROLLER CAIN PER FOOT

Item number 30583



80 OFFSET LINK

Item Number 23803

80 MASTER LINK

Item Number 23802











HORZ.DRIVE CHAIN ASSY

#80 37LINKS+ML+OFF

Item number 25103

INCL.DRIVE CHAIN ASSY

#80 45LINKS+ML+OFF

Item Number 25104









HP335 RESERVOIR CART SPROCKETS

00184 8T 550 1.50 INCH 25131 8T 550 1.25 INCH 22983 8T-550 IDLER SPROCKET 25222 12T 80 1.50 INCH

8T-550 1 1/2"
SPROCKET

Item Number 00184

8T-550 1 1/4"
SPROCKET

Item number 25131

8T-550 5/8" IDLER SPROCKET

Item Number 22983



12T-80 1 1/2"
SPROCKET

Item Number 25222



22495 1.25 COUPLER 257227 32T 80 SPROCKET 22712 TAPER LOCK BUSING 1 1/2" 24678 11T 80 IDLER SPROCKET

1 1/4" COUPLER

Item Number 22495

32T-80 SPROCKET

Item number 25227

1 1/2" TAPER LOCK BUSHING FOR 25227

Item Number 22712



11T-80 IDLER SPROCKET

Item Number 24678




  25312 12T 80 HORZ. DRIVE SPROCKET 24683 TAPER LOCK BUSHING 1.25 INCH 5_16 KEY



12T-80 HORZ. DRIVE SPROCKET

Item Number 25312

1 1/4" TAPER LOCK BUSHING W/ 5/16 KEY FOR 25312

Item Number 24683











HP335 RESERVOIR CART SHAFTS

25211 IDLER SHAFT 1.25 X 48.5



IDLER SHAFT
1 1/4" X 49 1/2"

Item number 25211







25212 1.50 X 52.5



DRIVE SHAFT
1 1/2" X 51"

Item number 25212







25213 JACKSHAGT 53"



JACK SHAFT
1 1/2" X 53"

Item number 25213











HP335 RESERVOIR CART BEARINGS

22977 BEARING 1.0 26464 BEARING PAD PUSHER BLOCK 22098 BEARING AUGER MOUNT 1.50

1 1/2" BEARING

Item Number 22097

1" BEARING

Item number 22977

BEARING PAD PUSHER BLOCK

Item Number 26464C



1 1/2" BEARING

Item Number 22098






HP335 RESERVOIR CART AUGERS

AUGER ASSY LEFT SER#200+ AUGER ASSY RIGHT SER#200+ AUGER ASSY LEFT SER#1-153 AUGER ASSY RIGHT SER#1-153

AUGER ASSY LEFT SER#200+

Item Number 25272



AUGER ASSY RIGHT SER#200+

Item number 25271

AUGER ASSY LEFT SER#1-153

Item Number 25272A



AUGER ASSY RIGHT SER#1-153

Item Number 25271A




25240 AUGER TUBE WELDMENT SER#200+ 25240A AUGER TUBE WELDMENT SER#1-153 24499 AUGER LEFT 12 X 36 24501 AUGER RIGHT 12 X 36

AUGER TUBE WELDMENT SCH80 SER#200+

Item Number 25240

AUGER TUBE WELDMENT SCH40 SER#1-153

Item number 25240A

AUGER LEFT 12" X 36"

Item Number 24499



AUGER RIGHT 12" X 36"

Item Number 24501




22611 SUGER LEFT 9" X 18" 22613 AUGER RIGHT 9" X 18" 22613A SETSCREW S.S.

AUGER LEFT 9" X 18"

Item Number 22611

AUGER RIGHT 9" X 18"

Item number 22613

SET SCREW STAINLESS

Item Number 22613A





28407 DRIVE END SHAFT SER#641+ 28408 IDLER END SHAFT SER#1-640 22603 IDLER END SHAFT ER31-640

DRIVE END SHAFT SER#641+

Item Number 28407

DRIVE END SHAFT
SER#1-640

Item number 22606

IDLER END SHAFT SER#641+

Item Number 28408



IDLER END SHAFT
SER#1-640

Item Number 22603




24395A TORWUE ARM

LATCH PLATE

Item Number 22989



TORQUE ARM

Item Number 24395A











HP335 RESERVOIR CART DRIVE



TIRE
31 X 13.5 - 15
SER#200+

Item Number 27022



RIM
SER#200+

Item Number 27021

TIRE RIM ASSY

Item Number 27022A







22714 SPINDLE WELDMENT ASSY

TIRE
16.5 X 16.1
SER#49-153

Item Number 22035



RIM
SER#49-153

Item Number 22056

SPINDLE HUB WELDMENT ASSY

Item Number 22714







22686 HUB SPINDLE 25668F SPINDLE WASHER

SPINDLE WELDMENT ASSY

Item Number



HUB

Item Number 22686

SPINDLE ASSY

Item Number 22679



SPINDLE WASHER

Item Number 25668F



27812 SPINDLE NUT 27365A STUD 27365 LUG NUT 22681 HUB PACKAGE

SPINDLE NUT

Item Number 27812



STUD

Item Number 27365A

LUG NUT

Item Number 27365



HUB PACKAGE

Item Number 22681



27393 HUB CAP 27750 HUB SEAL 22043 OUTER BEARING 22047 OUTER RACE

HUB CAP

Item Number 27393



HUB SEAL

Item Number 22684

OUTER BEARING

Item Number 22043



OUTER RACE

Item Number 22047



INNNER BEARING 226897 INNER RACE 23801 JACKSTAND 23801A JACK MOUNT

INNER BEARING

Item Number 22683



INNER RACE

Item Number 22687

JACKSTAND

Item Number 23801

JACK MOUNT

Item Number 23801A





HP335 RESERVOIR CART RUNNER VALVE



26080 RUNNER VALVE / PEDAL ASSY

RUNNER VALVE PEDAL ASSY # 26080



27172 DOCK BUMPER 28173 RUNNER VALVE ASSY 27557B RUNNER VALVE O-RING BOSS 26053 HANDLE WELDMENT

DOCK BUMPER

Item Number 27127



RUNNER VALVE ASSY
O-RING BOSS

Item Number 27557D

RUNNER VALVE
O-RING BOSS

Item Number 27557B



HANDLE WELDMENT

Item Number 27557C





26076 ACT.PLUNGER WLD. 26078 ACT.TUBE WLD. 27170 COMPRESSION SPRING 27169 EXTENSION SPRING

ACT.PLUNGER WLD.

Item Number 26076



ACT.TUBE WLD.

Item Number 26078

COMPRESSION SPRING

Item Number 27170



EXTENTSION SPRING

Item Number 27169



26068 VALVE MOUNT PLATE

VALVE MOUNT PLATE

Item Number 26068



HINGE TUBE

Item Number 26074

HZ. SUPPORT TUBE

Item Number 26066



PEDAL WELDMENT

Item Number 26079



HP335 RESERVOIR CART PAINT / DECALS



24538 JACKRABBIT DECAL 6" BROWN 27532 CAUTION DECAL 27552A ONE GAL BEIGE MIXED 27552 ONE GALLON PRIMER MIXED

JACKRABBIT DECAL
6" BROWN

Item Number 24538



CAUTION DECAL

Item Number 27532

ONE GALLON BEIGE MIXED

Item Number 27552A



ONE GALLON PRIMER MIXED

Item Number 27552



25750 BEIGE TOUCH UP     25750A BROWN TUOCH UP PAINT

BEIGE TOUCH UP

Item Number 25750










BROWN TOUCH UP

Item Number 25750A







HP335 RESERVOIR CART HYDRAULICS

26242 HYD MOTOR RE18 27553 SEAL KIT RE MOTOR 24409 HYD MOTOR RE32

HYD MOTOR INCLINE RE18

Item Number 26242



RE MOTOR SEAL KIT

Item Number 27553

MOTOR MOUNT INCLINE

Item Number 25391



HYD MOTOR HORZ. RE32

Item Number 29802



24664 HYD MOTOR RS18 24664 RS MOTOR SEAL KIT 27557B RUNNER VALVE O-RING BOSS 27557B RUNNER VALVE O-RING BOSS

HYD MOTOR AUGER RS18

Item Number 24664



RS MOTOR SEAL KIT

Item Number 24664A

RUNNER VALVE
O-RING BOSS

Item Number 27557B



RUNNER VALVE
PIPE THREAD

Item Number 27557



27113 LEVER PIVOT BOX 25707 CHECK VALVE 25278 DOUBLE CLAMP .75 25131 FCR FLOW CONTROL WITH RELIEF

LEVER PIVOT BOX

Item Number 27113A



CHECK VALVE

Item Number 25707

3/4" DOUBLE CLAMP

Item Number 25278



FLOW CONTROL WITH RELIEF
FCR51-12 O-RING BOSS

Item Number 25132



24403 FC FLOW CONTROL NO RELIEF FOR AUGERS 25131 FCR FLOW CONTROL WITH RELIEF FLOW CONTROL WITH RELIEF FCR-10 O-RING BOSS FCK FLOW CONTROL SEAL KIT

FLOW CONTROL
FC-12 O-RING BOSS NO RELIEF FOR AUGES

Item Number 24403



FLOW CONTROL WITH RELIEF
FCR-12 PIPE

Item Number


FLOW CONTROL WITH RELIEF FCR-10 O-RING BOSS

Item Number



SEAL KIT, FLOW CONTROL

Item Number 25132D



25132B SPRING FOR FCR 25132C BALL FOR FCR

FCR RELIEF KIT
BALL,SPRING,SCREW,NUT,WSHR

Item Number 25132A



SPRING FCR

Item Number 25132B

BALL FCR

Item Number 25132C



SCREW FCR

Item Number X



    27491 MANIFOLD

NUT FCR

Item Number X



WASHER FCR

Item Number X

MANIFOLD

Item Number 27491



X

Item Number 27317







Item Number X



X

Item Number X

X

Item Number X



X

Item Number X





HP335 DRAPER TOP SLIDE KITS



27571 DRAPER SLIDE KIT SER 3 200 =

SLIDE KIT # 27571
FOR HP 335 DRAPER TOP SERIAL # 325+

ITEM # PART # DESCRIPTION REQUIRED
1 27559 LONG SLIDE 60" 2
2 27561 SHORT SLIDE 38" 2
3 22190 ELEVATOR BOLT HARDWARE 16







27269 DRAPPER SLIDE KIT SER# 235-324

SLIDE KIT # 27269
FOR HP 335 DRAPER TOP SERIAL # 235-324

ITEM # PART # DESCRIPTION REQUIRED
1 27191 SHORT SLIDE 27" 2
2 27192 LONG SLIDE 67" 2
3 22190 ELEVATOR BOLT HARDWARE 16
