STICKJACK SJ10 CHAIN & PARTS

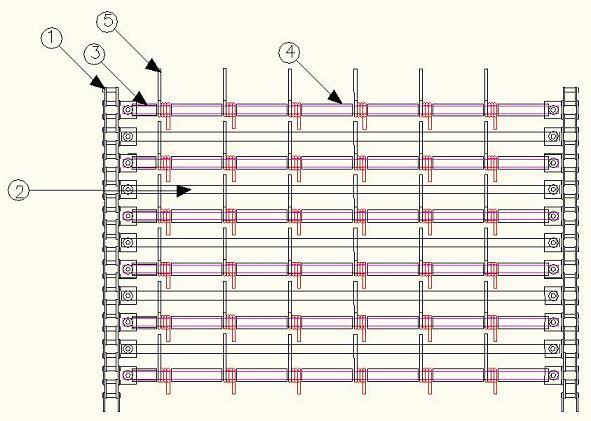

STICKJACK CHAIN ASSEMBLY COMPLETE
Item Number 29280

29280 STICKJACK CHAIN ASSY

1 29284 DESTICKER CHAIN ONLY (PAIR) 25.2' 1
2 29259 SPREADER BAR 93
3 29263 SPACER TUBE A 46
4 29264 SPACER TUBE B 276
5 29248 OR 29248A SPRING 276
REF.# PART# DESCRIPTION QTY



29284 STICKJACK CHAIN ONLY (PAIR) 25'2" 27142 MASTER LINK 557 W/ A4 ATTACHMENT


STICKJACK CHAIN ONLY
(PAIR) 25'2"

Item number 29284

STICKJACK CHAIN PER FOOT

Item number 25573

MASTER LINK
557 W/A4 ATTACHMENT

Item Number 27142







29248A SPRING FINGER 6.75 29248 SPRING FINGER 5.25 29259 DESTICKER TUBE 36 5/8" X 3/4" 29263 SPACER TUBE A 2 1/8" X 3/4"

SPRING FINGER 6 3/4"

Item number 29248A

SPRING FINGER 5 1/4"

Item number 29248

DESTICKER TUBE
36 5/8" X 3/4"

Item Number 29259

SPACER TUBE A

Item Number 29263



29264 SPACER TUBE B 4 3/16" X 3/4" 27253 ROLLER CHAIN PER FOOT 26456 MASTER LINK 29386 DESTICKER BAR ASSY

SPACER TUBE B

Item number 29264

ROLLER CHAIN #50
PER FOOT (BELT DRIVE)

Item number 27253

MASTER LINK #50

Item Number 26456A

DESTICKER BAR ASSY

Item number 29386







STICKJACK SJ10 SPROCKETS

26585 SPROCKET 11T 550 ( 1 1/4") 29356 11T SPROCKET 22983 SPROCKET 8T 550 (5/8" BORE) 26201 ECCENTRIC SPROCKET 6T (5/8" BORE)

11T 550 (1 1/4" BORE)

Item number 26585

11T 550 FRONT IDLER W/ BEARING (1" BORE)

Item number 29371

8T 550 (5/8" BORE)

Item Number 22983

6T ECCENTRIC
(5/8" BORE)

Item Number 26201



26201A 6T CONCENTRIC SPROCKET 8/5" BORE 28690 SPROCKET 50B11 ( 1" BORE )

6T CONCENTRIC
(5/8" BORE)

Item number 26201A

11T 50 (1" BORE)

Item number 28690







STICKJACK SJ10

SHAFT, PULLEYS, BEARINGS & TORQUE ARMS

29223 DRIVE SHAFT 29223 DRIVE SHAFT



DRIVE SHAFT
1 1/4" X 48 1/8"

Item number 29223







28769A DRIVE PULLEY RUBERIZED 28769A DRIVE PULLEY



DRIVE PULLEY RUBERIZED
1" X 48 1/4"

Item number 28769A





28768A IDLER PULLEY RUBBERIZED 26768A IDLER PULLEY



IDLER PULLEY RUBERIZED
1" X 46 1/4"

Item number 28768A







22977 BEARING PILLOW BLOCK 1" 22096 BEARING 29313 BEARING 1" FOR #29356 26464 BEARING PAD "PUSHER" BLOCK

1" BEARING

Item number 22977

1 1/4" BEARING

Item number 22096

1" BEARING FOR 11T SPROCKET #29356

Item Number 29313

BEARING PAD
"PUSHER" BLOCK

Item Number 26464C



29287 TORQUE ARM RIGHT 29287A TORQUE ARM LEFT 29355 TORQUE ARM

TORQUE ARM RIGHT

Item number 29287

TORQUE ARM LEFT

Item number 29287A

TORQUE ARM

Item Number 29355






STICKJACK SJ10 ELECTRICAL

28213 TOGGLE SWITCH 29306 TRAILER PLUG 29307 TRAILER PLUG

TOGGLE SWITCH 1NT1-7
DWG.REF#1

Item number 28213

TRAILER PLUG
DWG.REF#2

Item number 29306

TRAILER PLUG
DWG.REF#3

Item Number 29307

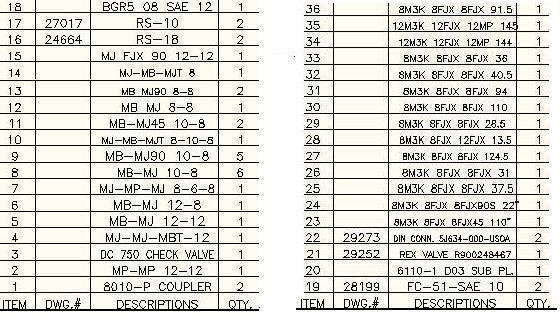

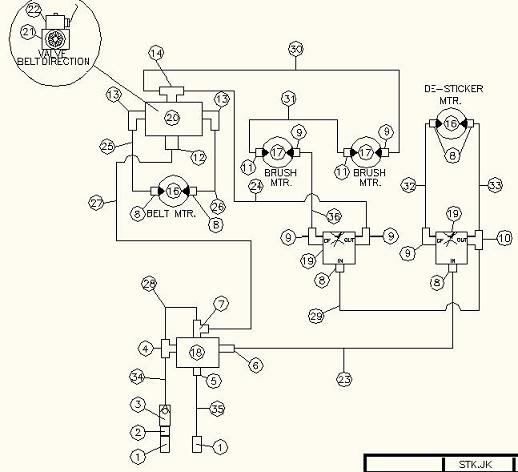

STICKJACK SJ10 HYDRAULICS
FOR SERIAL # 1-16

29275 HYDRAULIC SER#1-16

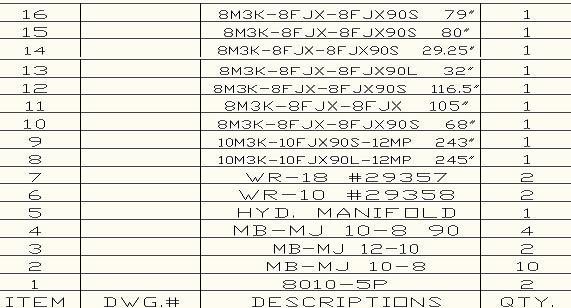

STICKJACK SJ10 HYDRAULICS
FOR SERIAL # 17+



29357 HYD MOTOR WR10 29538 HYD MOTOR (BELT) 29331 MANNIFLOD 28379 CHECK VALVE

HYD MOTOR (BRUSH)
WR10

Item number 29357

HYD MOTOR (BELT)
WR18

Item number 29358

MANNIFOLD

Item Number 29331

CHECK VALVE

Item Number 28379





STICKJACK SJ10 MISCELLANEOUS



29310 BRUSH SEGMENT 29335 WEAR GUIDE 6.5 X 22.5 29335A WEAR GUIDE 6.5 X 47.25 29269A FRONT SKIRT

BRUSH SEGMENT

Item number 29310

WEAR GUIDE
6.5" X 22.5"

Item number 29335A

WEAR GUIDE
6.5" X 47.25"

Item Number 29335

FRONT SKIRT

Item Number 29269A



23801 JACKSTAND 23801A JACK MOUNT 25750 BIEGE TOUCH UP PAINT 29311 STICKJACK DECAL

JACK STAND

Item number 29341

JACK MOUNT

Item number 23801A

TOUCH UP PAINT BEIGE

Item Number 25750

STICKJACK DECAL W/ GRAPHICS

Item Number 29311



29250A TIRE & WHEEL ASSY 29272 RIM ONLY 29250 TIRE 29354 STICKBELT 40" X 197"

TIRE & WHEEL ASSY

Item number 29250A

RIM

Item number 29250B

TIRE
27X9.50-15/6PLY

Item Number 29250

STICK BELT
40" X 197"

Item Number 29354



29270 HUB ASSEMBLY 29270A HUB PACKAGE 29270C BEARING, INNER 29270E BEARING, OUTER

HUB ASSEMBLY

Item number 29270

HUB PACKAGE

Item number 29270A

BEARING, INNER

Item number 29270C

BEARING, OUTER

Item Number 29270E




29270B RACE, INNER 29270D RACE, OUTER 29270F STUD 29270H GREASE CAP

RACE, INNER

Item number 29270B



RACE, OUTER

Item number 29270D





STUD

Item number 29270F

GREASE CAP

Item Number 29270H







 29270G HUB SEAL





SEAL, HUB

Item Number 29270G



STICKJACK FAN PARTS

29388 SHEAVE LARGE 29392 SHEAVE, SMALL 29393 BEARING 1.25 VAS

SHEAVE, LARGE

Item number 29388



SHEAVE, SMALL

Item Number 29392

SHEAVE, SMALL

Item Number 29392





29390 POWER BAND 29391 BUSHING 1.25" 29389 BUSHING 1"

POWER BAND

Item number 29390

BUSHING 1.25"

Item number 29391

BUSHING 1"

Item Number 29389




PLEASE CALL JACKRABBIT PARTS DEPARTMENT 209 599 6118
